1、SOUND PRESSURE LEVEL(声压等级)
100±3dB SPL @800,1000,1200,1500 Hz AVE (0dB SPL=20μPa)
Measuring condition: 0.1W (Sine wave) 0.05m measured
2、IMPEDANCE: 8±15% Ω(@ 1KHz 1V)
3、 RATED POWER(额定功率):2W. MAX POWER(最大功率): 3 W
4、 RESONANCE FREQUENCY(谐振频率) (F0):500±20%Hz @ 1V. (Without Baffler)

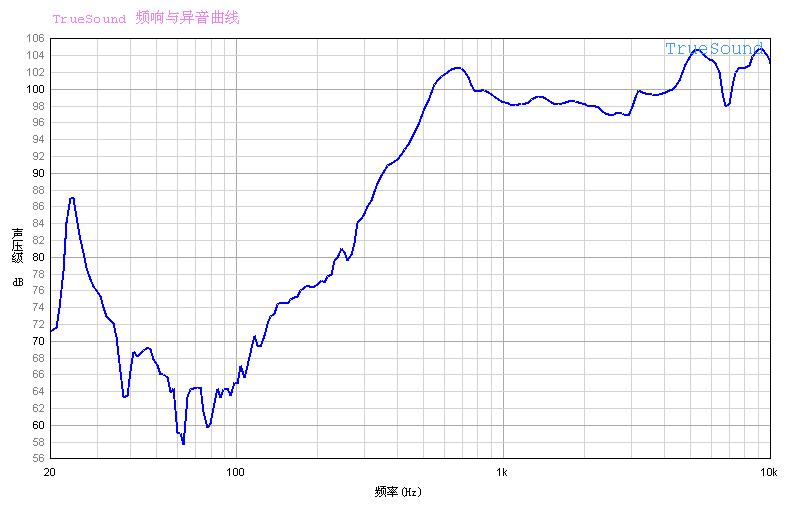

5、 BUZZ, RATTLE, etc(频率响应): Should not be audile at 4V sine wave from F0 to 20 kHz
6、OPERATING TEMPERATURE RANGE(工作温度): -20℃ ~ +60℃

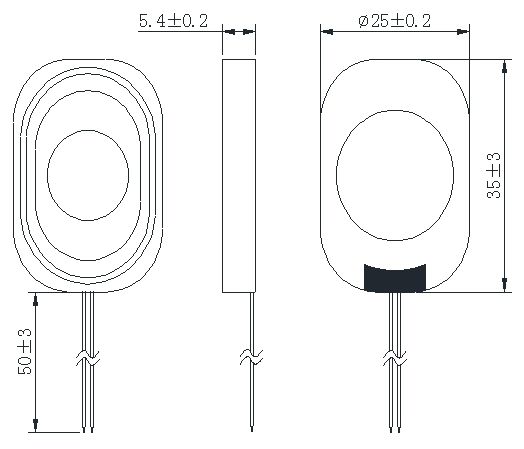

产品尺寸图
